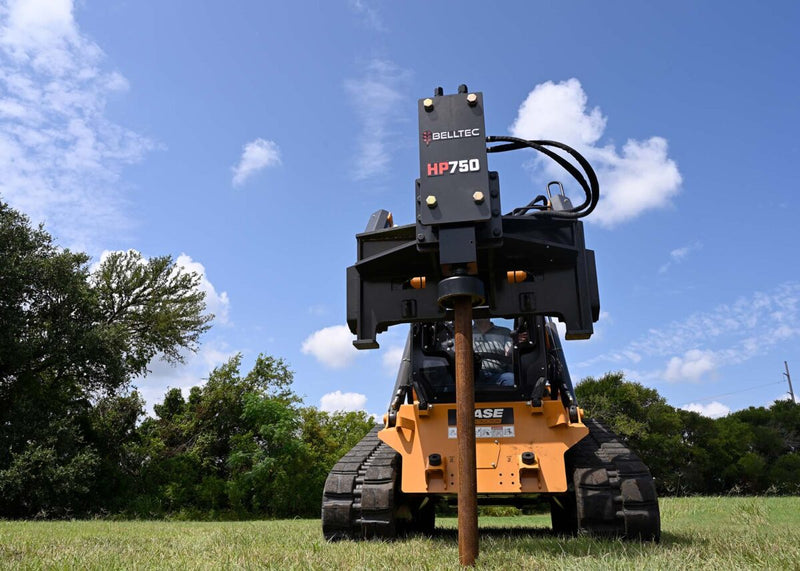

Belltec HP750 Post Driver
The Belltec HP750 is a nitrogen-powered post driver that delivers up to 750 ft·lb impact energy for driving wood and steel posts. It mounts to 4–6 ton machines and uses hydraulic flow to deliver 500–900 blows per minute for fast, repeatable driving.
Key Features & Specifications
- Power type: Nitrogen power cell with hydraulic actuation
- Impact energy: 750 ft·lb
- Blow rate: 500–900 blows per minute
- Nitrogen pressure: 230 PSI (16 Bar)
- Prime mover: 4–6 ton class (skid steers, excavators)
- Hydraulic pressure: 2,000–3,000 PSI (138–207 Bar)
- Required flow: 11–18 GPM (41–68 LPM)
- Material capability: Drives both wood and steel posts
- Use case: Handles a range of post sizes and varying ground conditions
Ideal for: Farmers, ranchers, and fencing contractors needing a hydraulic-mounted driver for frequent post installation.
Shipping Information
Your order is confirmed and sent to our warehouse team.
Equipment is prepared and crated for LTL freight shipment. Handling time is 5–7 business days. Delivery times may vary based on seasonality, product availability, and destination.
Shipped via LTL freight carrier within the contiguous US. Tracking information provided via email once your order ships.
Curbside delivery included. Liftgate service included for residential addresses. Inspect all equipment upon arrival and note any damage on the carrier’s delivery receipt before signing.
Freight shipping calculated per product at checkout. Liftgate service included for residential deliveries. Please inspect all equipment upon delivery and note any damage on the delivery receipt before signing.
Warranty Coverage
All equipment sold by American Grain Supply is backed by the full manufacturer warranty. Coverage varies by brand and product type — typically 1–2 years for structural components and 90 days for wear parts.
Return Policy
We accept returns within 30 days of delivery for unused, unassembled equipment in original packaging. A 15% restocking fee applies. Freight return costs are the buyer's responsibility. Contact us before returning any item.
Need Help?
Our team is available Monday through Friday, 8:00 AM – 5:00 PM EST.
Phone: (404) 667-2554
We can help with product questions, compatibility, shipping quotes, and order status.
The Belltec HP750 is a nitrogen-powered post driver that delivers up to 750 ft·lb impact energy for driving wood and steel posts. It mounts to 4–6 ton machines and uses hydraulic flow to deliver 500–900 blows per minute for fast, repeatable driving.
Key Features & Specifications
- Power type: Nitrogen power cell with hydraulic actuation
- Impact energy: 750 ft·lb
- Blow rate: 500–900 blows per minute
- Nitrogen pressure: 230 PSI (16 Bar)
- Prime mover: 4–6 ton class (skid steers, excavators)
- Hydraulic pressure: 2,000–3,000 PSI (138–207 Bar)
- Required flow: 11–18 GPM (41–68 LPM)
- Material capability: Drives both wood and steel posts
- Use case: Handles a range of post sizes and varying ground conditions
Ideal for: Farmers, ranchers, and fencing contractors needing a hydraulic-mounted driver for frequent post installation.
Orders typically ship within 5–7 business days. Transit takes 3–8 business days via LTL freight carrier within the contiguous US. Freight cost is calculated per product and shown at checkout. Tracking provided via email. Inspect upon delivery.
Full manufacturer warranty included. Returns accepted within 30 days (15% restocking fee). Contact us before returning.
Phone: (404) 667-2554
Email: sales@americangrainsupply.com
Mon – Fri, 8 AM – 5 PM EST
