Bison

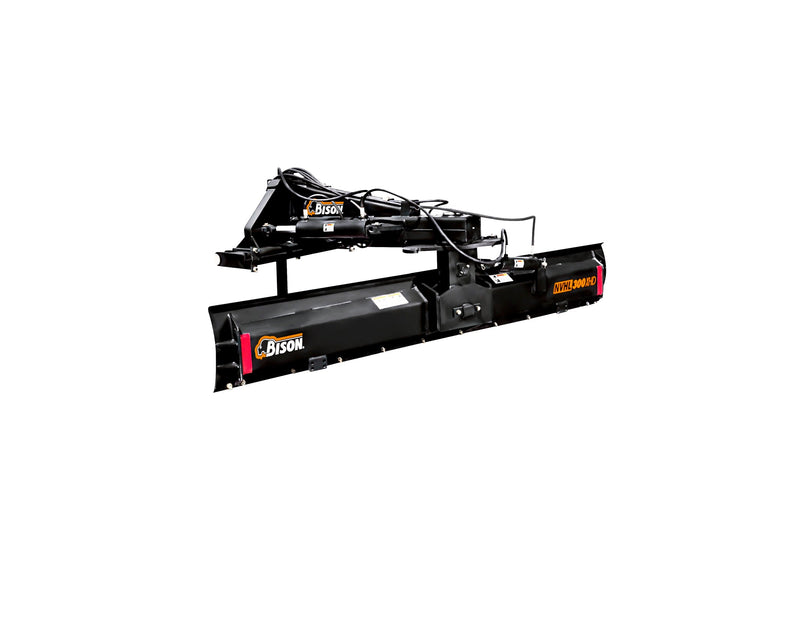

Bison NVHL Series Heavy Duty Rear Blade
The Bison NVHL Series is a heavy-duty rear blade that mounts on Category 2/3 three-point hitches for tractors rated **80–150 HP**. It’s built for grading, scraping, roadwork, and moving material with a reversible cutting edge and optional hydraulic angle/tilt/offset control.
- Manufacturer: Bison
- Model/Series: NVHL Series (NVHL-270XHD / NVHL-300XHD)
- Horsepower range: 80–150 HP
- Working widths: 9 ft (NVHL-270XHD) or 10 ft (NVHL-300XHD)
- Weight: Approx. 1,470 lb (without hydraulic cylinders)
- Moldboard: 19" tall, 5/16" thick with curvature designed for cutting and rolling soil
- Cutting edge: 1/2" x 6" high-carbon steel, reversible and replaceable
- Angle range: Full 360° swing via extra-long boom to keep blade clear of tractor tires
- Hydraulic options: Available kits for on-the-fly angle, tilt, and offset control
- Hitch compatibility: Category 2 and Category 3 three-point hitches
Ideal for: Farmers, ranchers, and contractors needing a durable rear blade for grading, ditching, dam work, and general material moving with tractors in the 80–150 HP range.
Shipping Information
Your order is confirmed and sent to our warehouse team.
Equipment is prepared and crated for LTL freight shipment. Handling time is 5–7 business days. Delivery times may vary based on seasonality, product availability, and destination.
Shipped via LTL freight carrier within the contiguous US. Tracking information provided via email once your order ships.
Curbside delivery included. Liftgate service included for residential addresses. Inspect all equipment upon arrival and note any damage on the carrier’s delivery receipt before signing.
Freight shipping calculated per product at checkout. Liftgate service included for residential deliveries. Please inspect all equipment upon delivery and note any damage on the delivery receipt before signing.
Warranty Coverage
All equipment sold by American Grain Supply is backed by the full manufacturer warranty. Coverage varies by brand and product type — typically 1–2 years for structural components and 90 days for wear parts.
Return Policy
We accept returns within 30 days of delivery for unused, unassembled equipment in original packaging. A 15% restocking fee applies. Freight return costs are the buyer's responsibility. Contact us before returning any item.
