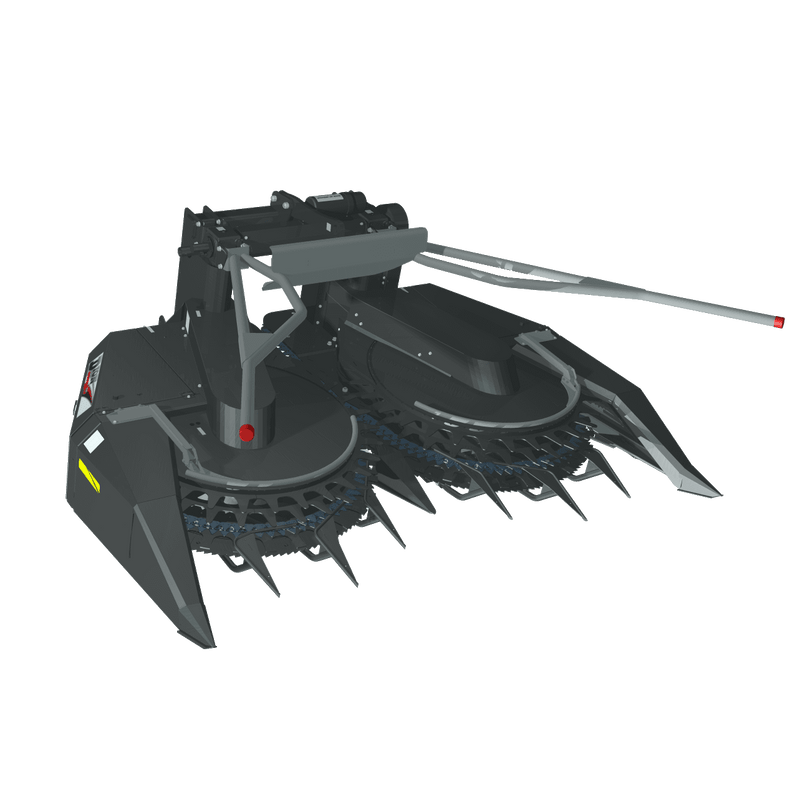

DION F63 120" Corn Head for Self-Propelled Harvesters
The DION F63 120" corn head is a 4-row, 120‑inch attachment for self-propelled, row‑independent forage harvesters. It cuts corn and feeds stalks into the harvester using carbide‑tipped rotary knives and a low‑maintenance drive layout.
Key Features & Specifications
- Compatibility: Designed for self‑propelled, row‑independent harvesters
- Cutting system: Rotary blades with tungsten‑carbide tips—offers a self‑sharpening action for extended blade life
- Drive & maintenance: Sealed cast‑iron gearboxes and O‑ring chain design to reduce daily upkeep
- Crop flow: Perpendicular feeding and continuous crop flow for a consistent length of cut
- Working width: 120 in (3.0 m)
- Rows: 4 rows at 30 in spacing
- Dimensions: Overall width 130 in (3.3 m); overall height 55 in (1.4 m); base unit length 75 in (1.9 m)
- Weight: 2650 lb (1202 kg)
- PTO speed: 1000 rpm
Ideal for: Operators running 30‑inch corn who need a 4‑row, 120‑inch head with durable components and reduced daily maintenance.
Shipping Information
Your order is confirmed and sent to our warehouse team.
Equipment is prepared and crated for LTL freight shipment. Handling time is 5–7 business days. Delivery times may vary based on seasonality, product availability, and destination.
Shipped via LTL freight carrier within the contiguous US. Tracking information provided via email once your order ships.
Curbside delivery included. Liftgate service included for residential addresses. Inspect all equipment upon arrival and note any damage on the carrier’s delivery receipt before signing.
Freight shipping calculated per product at checkout. Liftgate service included for residential deliveries. Please inspect all equipment upon delivery and note any damage on the delivery receipt before signing.
Warranty Coverage
All equipment sold by American Grain Supply is backed by the full manufacturer warranty. Coverage varies by brand and product type — typically 1–2 years for structural components and 90 days for wear parts.
Return Policy
We accept returns within 30 days of delivery for unused, unassembled equipment in original packaging. A 15% restocking fee applies. Freight return costs are the buyer's responsibility. Contact us before returning any item.
Need Help?
Our team is available Monday through Friday, 8:00 AM – 5:00 PM EST.
Phone: (404) 667-2554
We can help with product questions, compatibility, shipping quotes, and order status.
The DION F63 120" corn head is a 4-row, 120‑inch attachment for self-propelled, row‑independent forage harvesters. It cuts corn and feeds stalks into the harvester using carbide‑tipped rotary knives and a low‑maintenance drive layout.
Key Features & Specifications
- Compatibility: Designed for self‑propelled, row‑independent harvesters
- Cutting system: Rotary blades with tungsten‑carbide tips—offers a self‑sharpening action for extended blade life
- Drive & maintenance: Sealed cast‑iron gearboxes and O‑ring chain design to reduce daily upkeep
- Crop flow: Perpendicular feeding and continuous crop flow for a consistent length of cut
- Working width: 120 in (3.0 m)
- Rows: 4 rows at 30 in spacing
- Dimensions: Overall width 130 in (3.3 m); overall height 55 in (1.4 m); base unit length 75 in (1.9 m)
- Weight: 2650 lb (1202 kg)
- PTO speed: 1000 rpm
Ideal for: Operators running 30‑inch corn who need a 4‑row, 120‑inch head with durable components and reduced daily maintenance.
Orders typically ship within 5–7 business days. Transit takes 3–8 business days via LTL freight carrier within the contiguous US. Freight cost is calculated per product and shown at checkout. Tracking provided via email. Inspect upon delivery.
Full manufacturer warranty included. Returns accepted within 30 days (15% restocking fee). Contact us before returning.
Phone: (404) 667-2554
Email: sales@americangrainsupply.com
Mon – Fri, 8 AM – 5 PM EST
