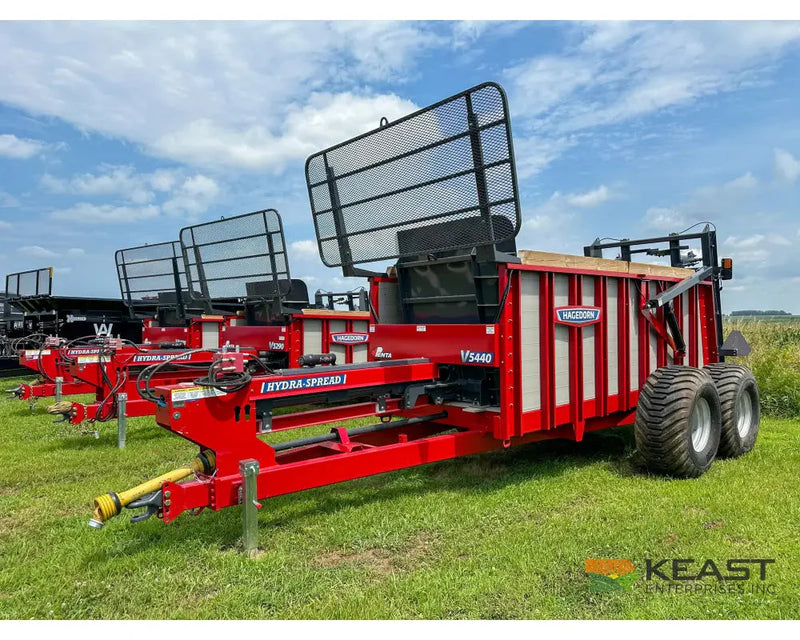

Hagedorn 5440 Hydra-Spread

The Hagedorn 5440 Hydra-Spread is a high-capacity hydraulic manure spreader built for hauling large loads and delivering controlled material flow across fields. It pairs hydraulic flow control with safety sequencing and heavy-duty components for long duty cycles and straightforward upkeep.

Key Features

• Hydra-Spread Flow Control: Adjustable hydraulic metering for consistent unloading rate.
• Sequencing Valve: Prevents the pushgate from engaging until the endgate is fully raised to protect components.
• Hollow-Rod Cylinders: Internal rod design reduces external hoses and uses a ball-type seal for smooth operation.
• Durable Poly Boards: Tongue-and-groove poly panels form a near-watertight box and are replaceable if worn.
• Robust Frame: Structural channels and tubing combine for strength and torsional flexibility.
• Splined Drivetrain: Power is distributed along the shaft for reduced wear and simpler service.
• Triple-Lip Sealed Bearings: Permanently lubricated bearings designed for heavy loads and reduced maintenance.

Specifications

• Manufacturer: Hagedorn
• Model/Series: 5440 Hydra-Spread
• Heaped Volume: 684 cu ft / 19.4 m³
• Struck Level (ASAE S324.1): 440 cu ft / 12.4 m³
• Carrying Capacity: 36,000 lbs / 16,300 kg

Ideal For: Farmers and custom operators handling large-volume solid manure spreading who need hydraulic flow control and rugged construction.
