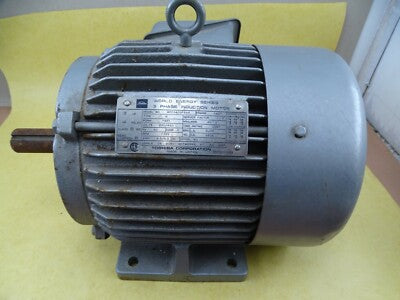

Toshiba 3-Phase Electric Motor

Three-phase Toshiba severe-duty motor for agricultural and industrial use. Provides inverter-duty operation, multiple HP/speed/voltage options, and protection against dust, water, and vibration for pumps, conveyors, fans, and grain-handling equipment.

Key Features & Specifications

• Manufacturer / Series: Toshiba — EQP Global® Severe Duty
• Power range: 0.5 to 800 HP
• Speeds: 60 Hz — 3600, 1800, 1200, 900 RPM; 50 Hz — 3000, 1500, 1000, 750 RPM
• Voltage options: 60 Hz — 230/460, 460, 575 V; 50 Hz — 190/380 or 380 V
• Frame sizes: 56 to 5811US
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Ingress protection: IP54, IP55, or IP65 options
• Duty rating: Inverter-duty for use with adjustable speed drives
• Construction: Cast-iron severe-duty frame for mechanical robustness
• Torque: Exceeds NEMA Design B torque levels to reduce stalling under heavy loads
• Bearings: Oversized bearings for extended service life
• Area classification: Rated Class I, Division 2, Groups A, B, C, D (for environments with potential flammable gases/vapors)

Ideal For: Farmers and plant operators running conveyors, grain dryers, augers, pumps, fans, and other heavy-duty equipment in dusty, wet, or vibration-prone conditions.
